Software Products

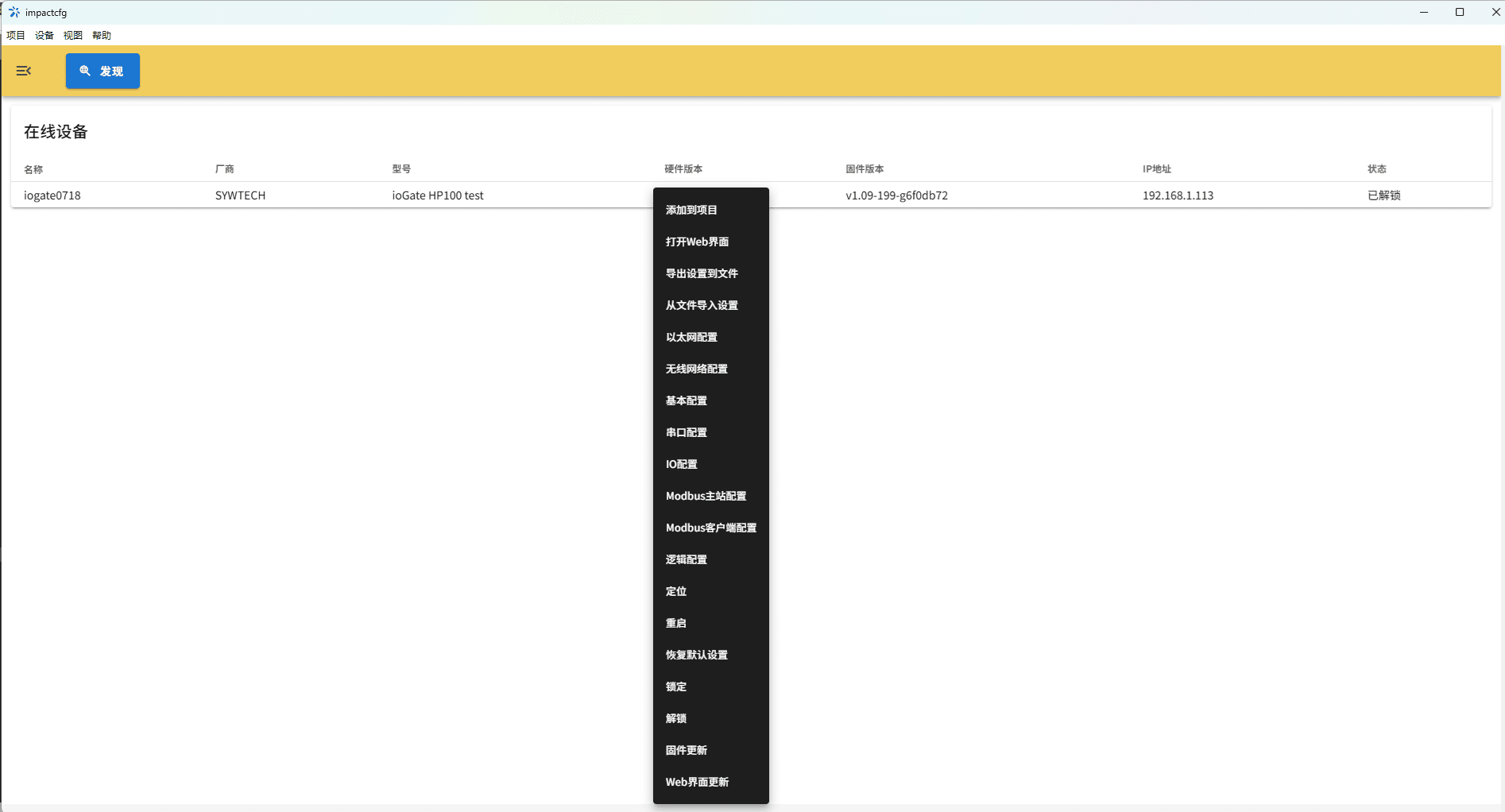

• ImpactCfg is the one-for-all configuration tool for ioGate hardware devices.

• Features

• Online (Local LAN) device discovery

• All-in-one live configuration

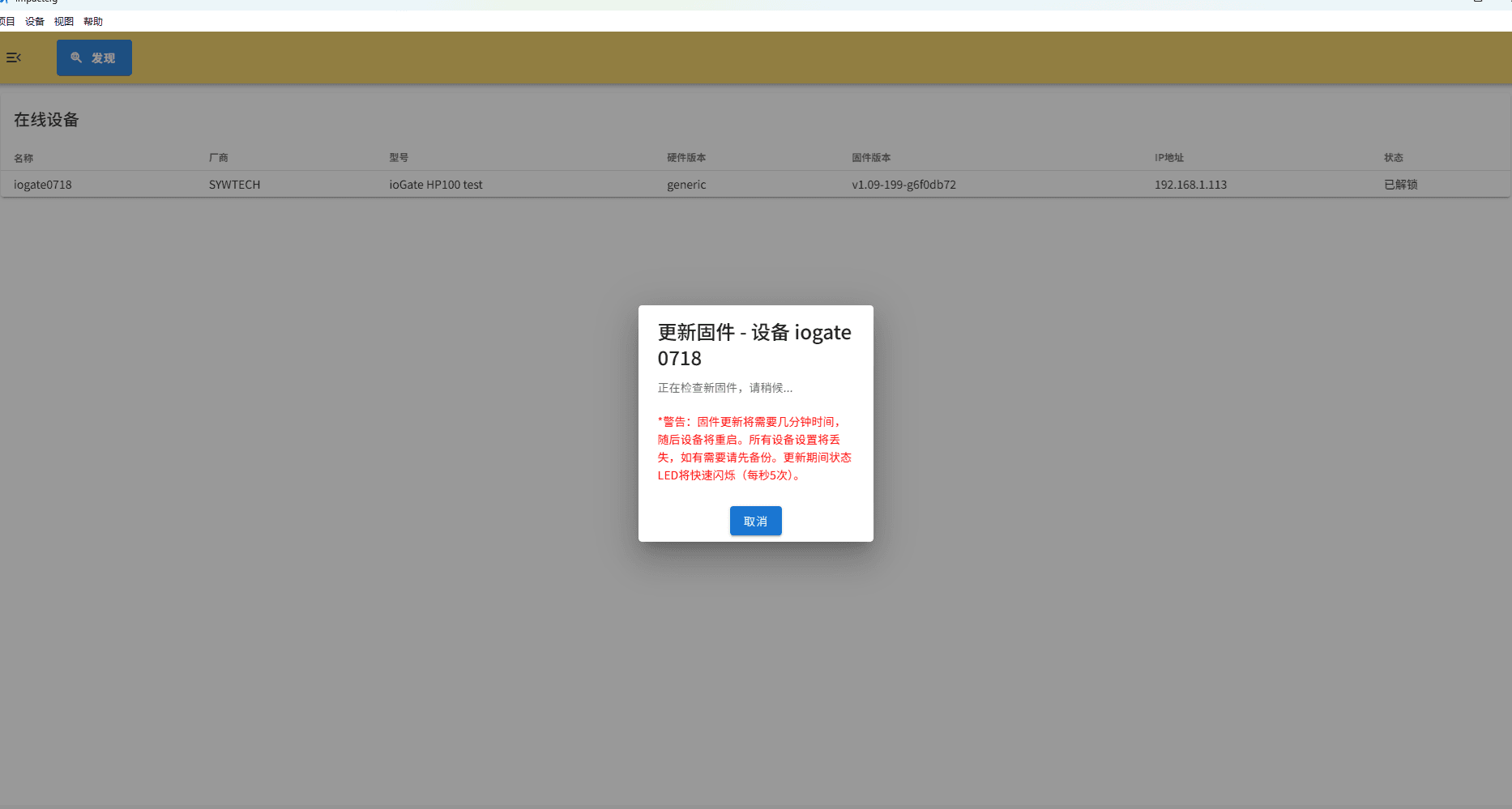

• OTA FW/WebUI update

• Device setting import/export

• Project management

Follow the link to download the impactCfg tool.

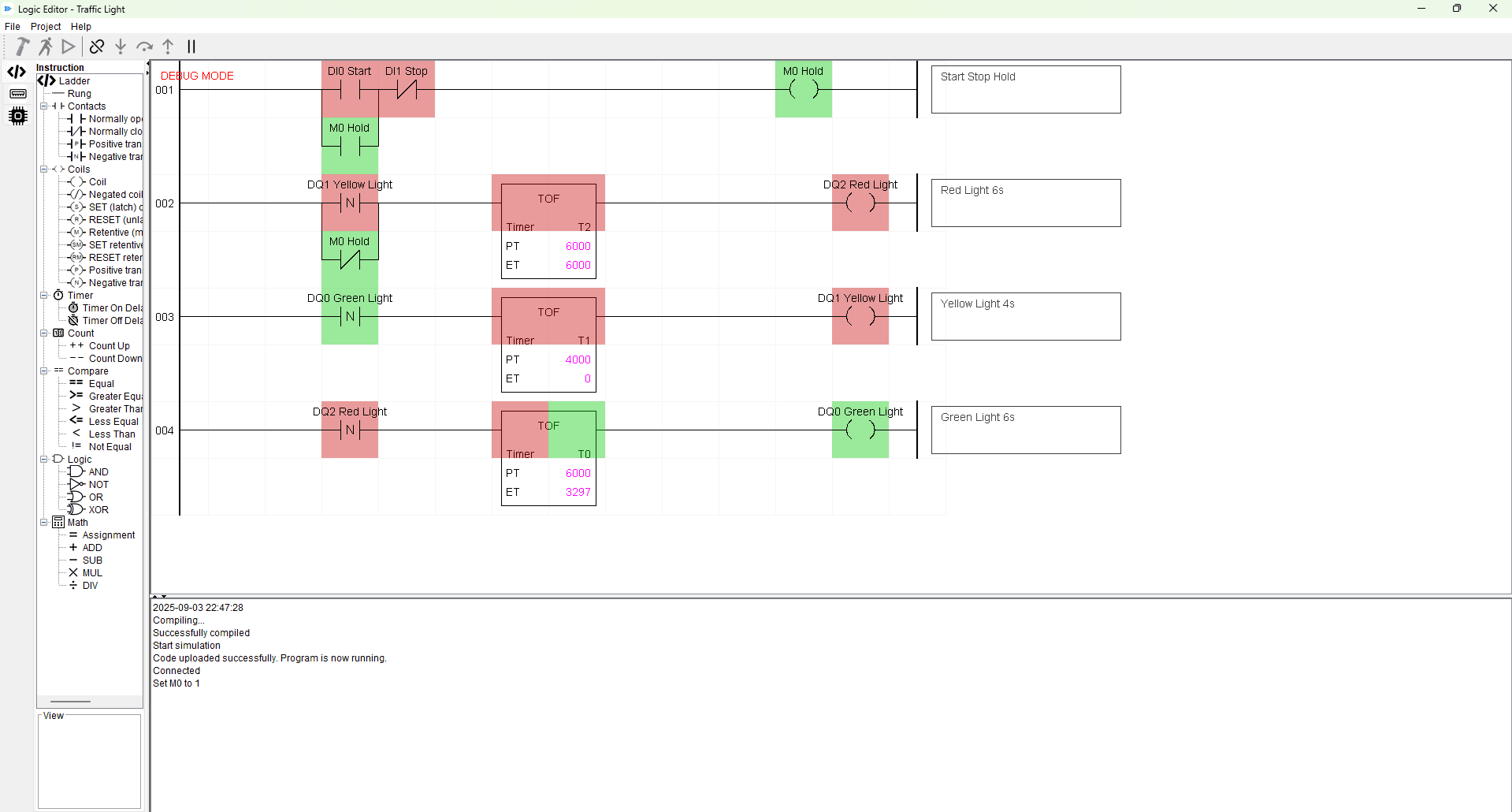

Programming and debugging tool for control function of ioGate devices. Supporting graphical ladder program editing and text based Javascript editing and live debug.

Features:

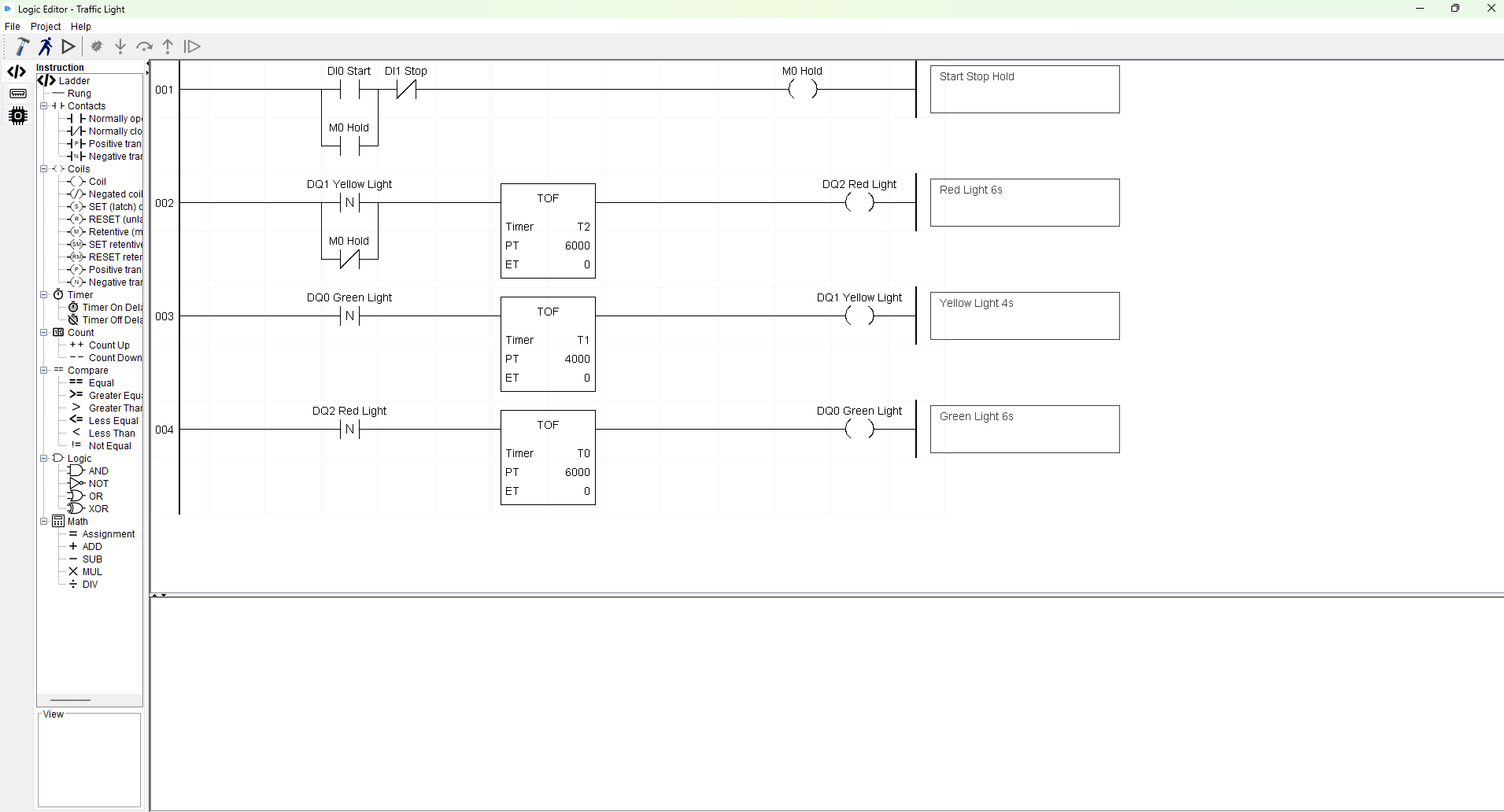

• Graphic Ladder Logic Programming
• Control Logic Simulation and Debug

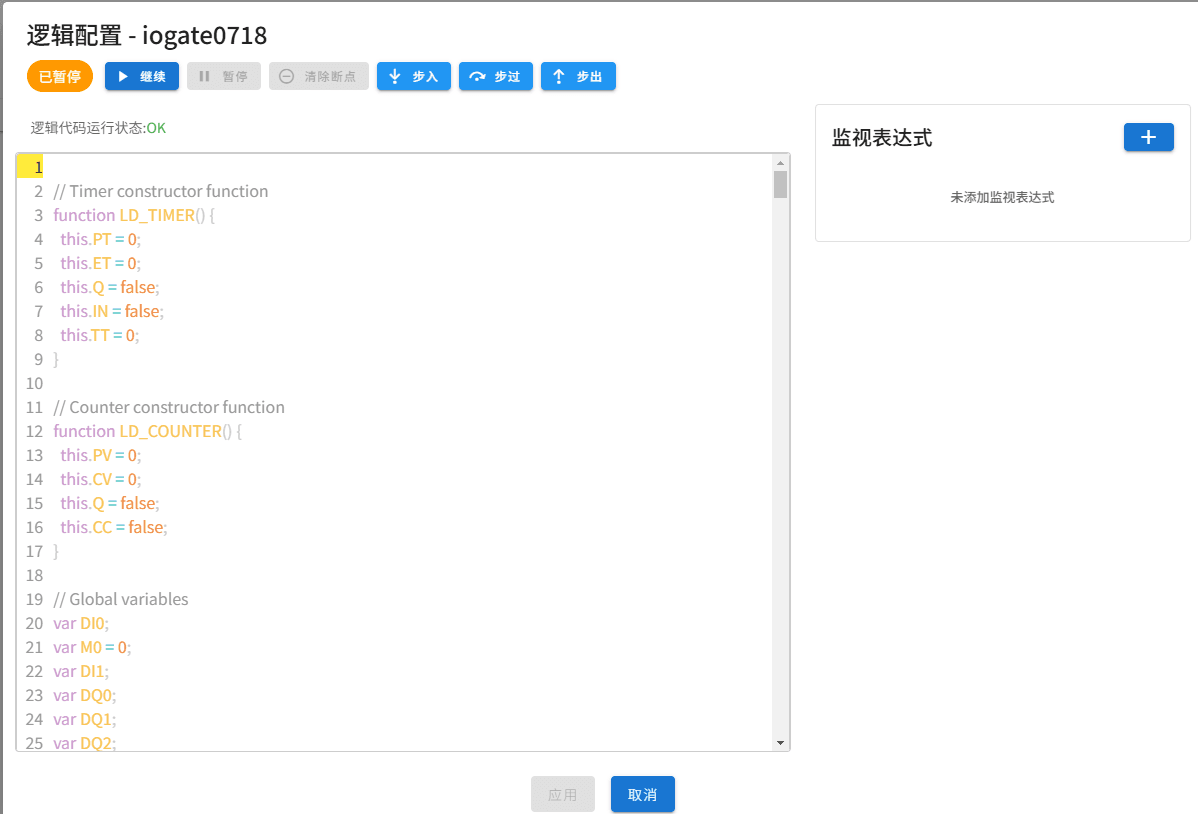

• Control Logic Live Debug
• Force/Release Value for IO Resources in Debug Mode
• Set Value for Intermediate Variables in Debug Mode

LogicEditor is made a component of UiEditor suite. Follow the link to download the UiEditor.

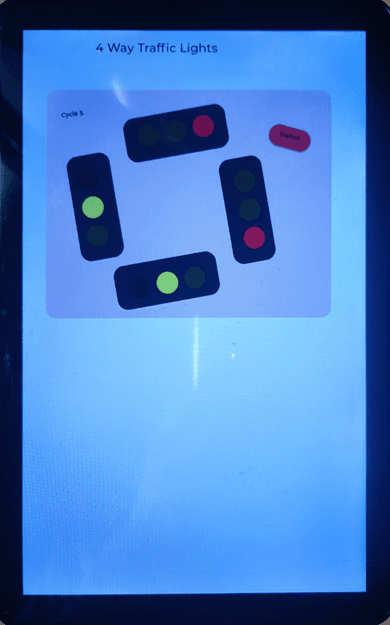

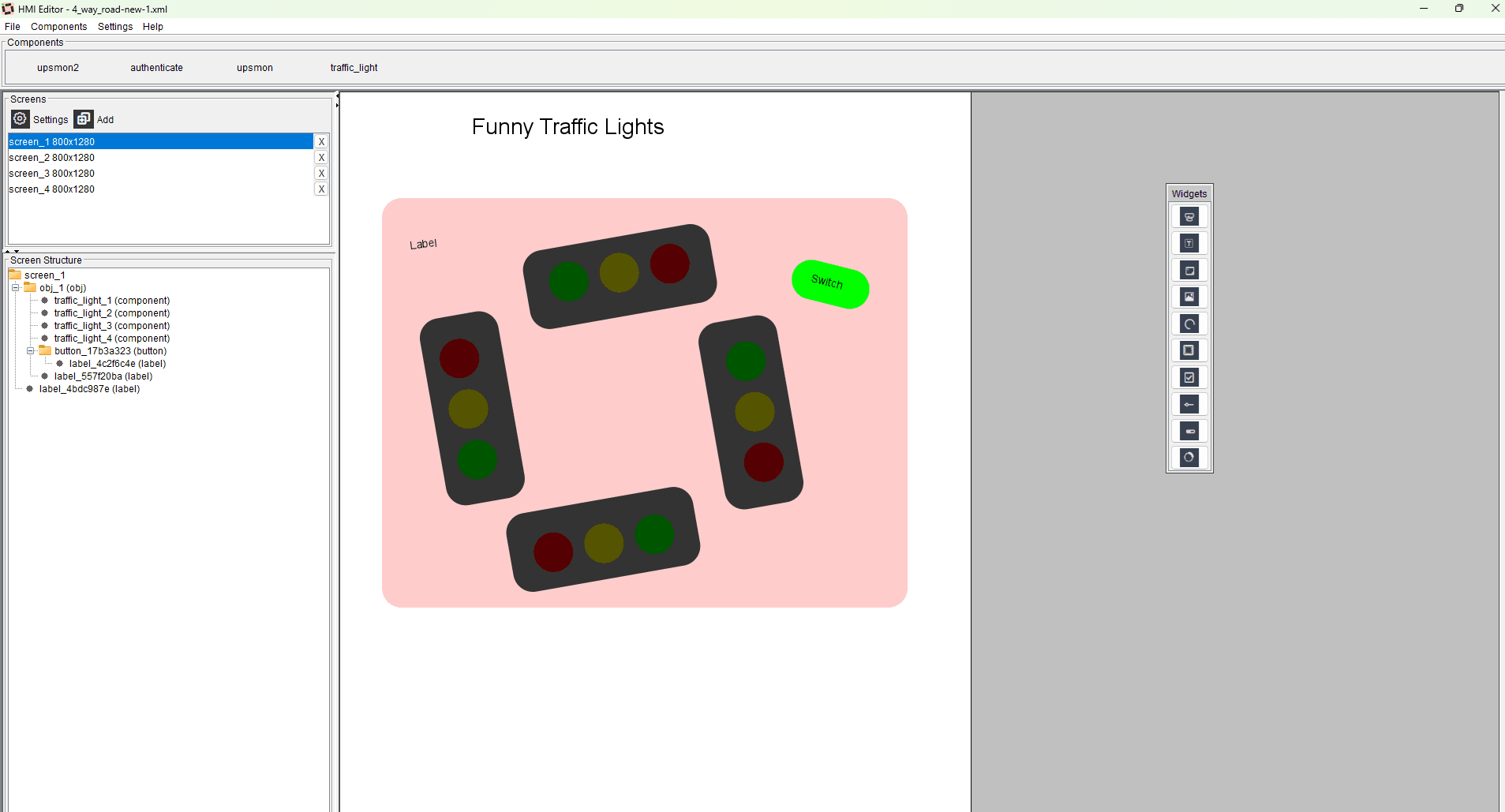

UI Editor delivering WYSIWYG user interface with data binding with control logic

Features

• What You See Is What You Get
• Full LVGL Widget Support
• User-defined Component Support

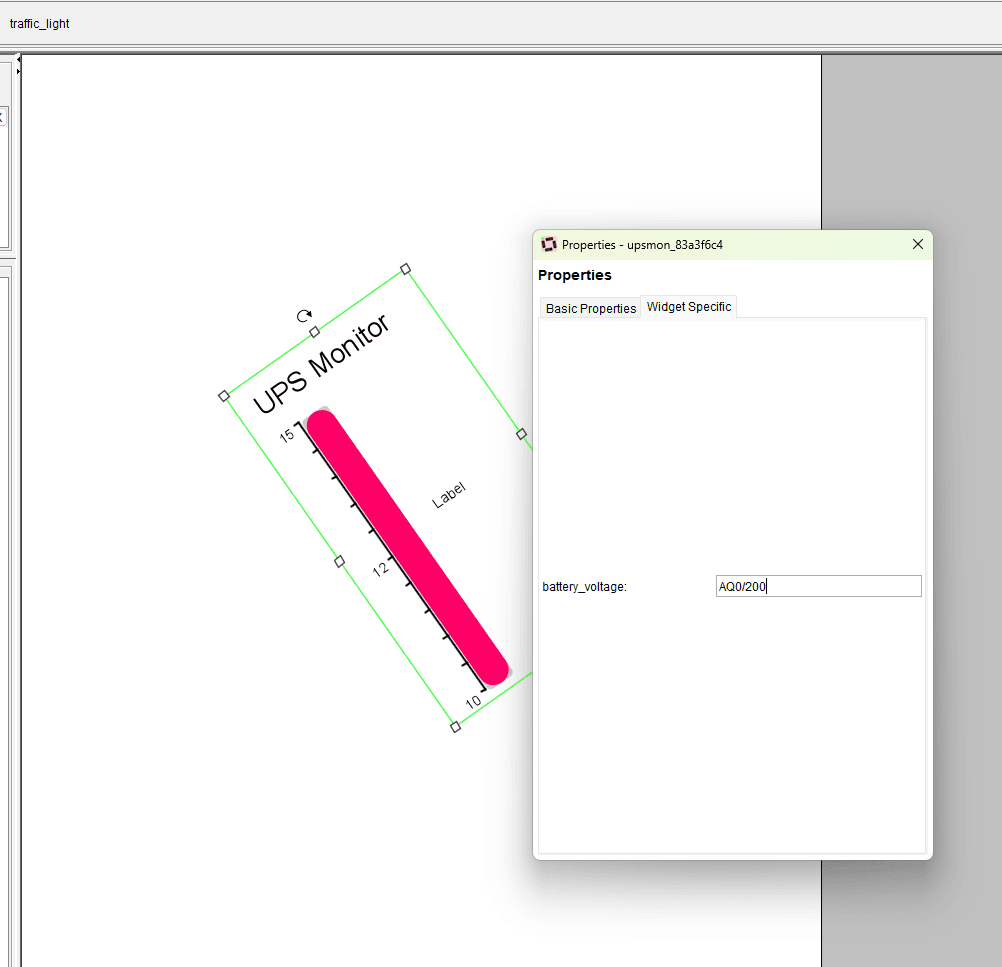

• Data Binding with Control Logic

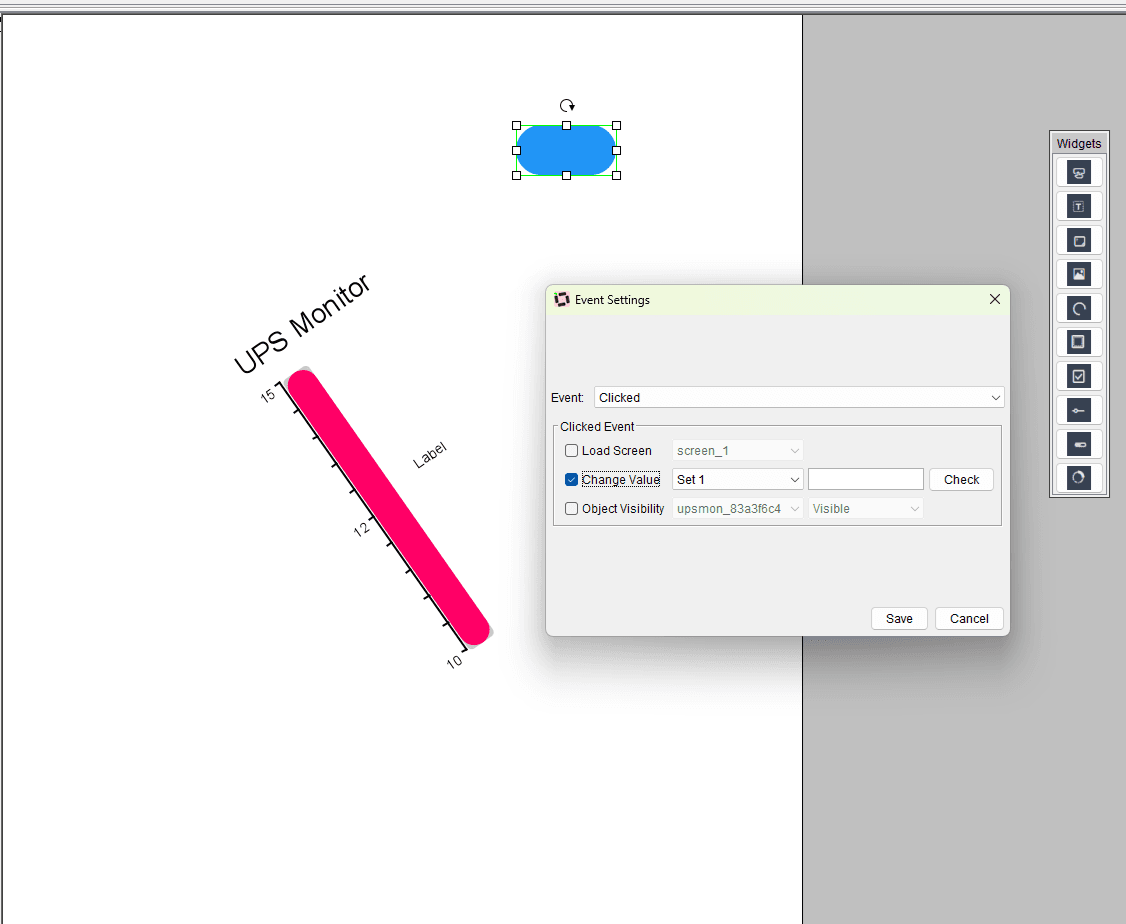

• UI Events Handling
• UI Configuration uploaded through network
• Support any Hardware Platform with the ioGate UI Runtime

Follow the link to download UI Editor.
