Hardware Products

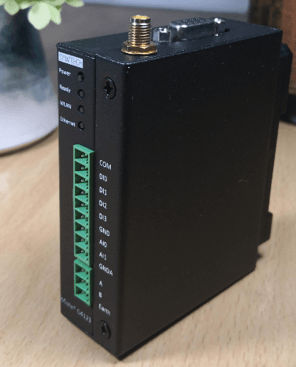

G4121
Use Scenario
Positioned for industrial equipment data acquisition, storage, and communication, it serves as a data server supporting equipment. It features two independent network ports: one Ethernet and one WLAN, enabling flexible deployment in industrial environments.
ioGate® supports OPC UA server and MQTT publishing, Modbus TCP master/slave, Modbus TCP to RTU conversion, and serial server protocols such as S7 on network interfaces. It also supports MQTT Transport Layer Security (TLS) and OPC UA session-layer encryption.
The serial port allows users to configure multiple protocols: Modbus master, Modbus slave, serial server, Modbus TCP to RTU conversion, and more. It integrates I/O modules for device data acquisition and control.
With rich features and flexible configuration, it is suitable for most industrial field data acquisition and protocol conversion scenarios. Based on a real-time operating system, it offers fast startup, real-time response, and stable reliability.
It reduces the number and types of devices required, lowering procurement costs and management complexity. Support for MQTT TLS and OPC UA session-layer encryption enables easy cloud deployment through MQTT publishing.
Edge storage allows real-time on-site data to be saved to SQLite database files and supports scenarios such as NC program storage. It also supports FTP and serial DNC file transfer protocols.
Roles
G4122
2 Ditigal Outputs type, best for field control
Roles
G4123
8GB SD CARD storage type, best for edge storage server
Roles
HP100
Use Scenario

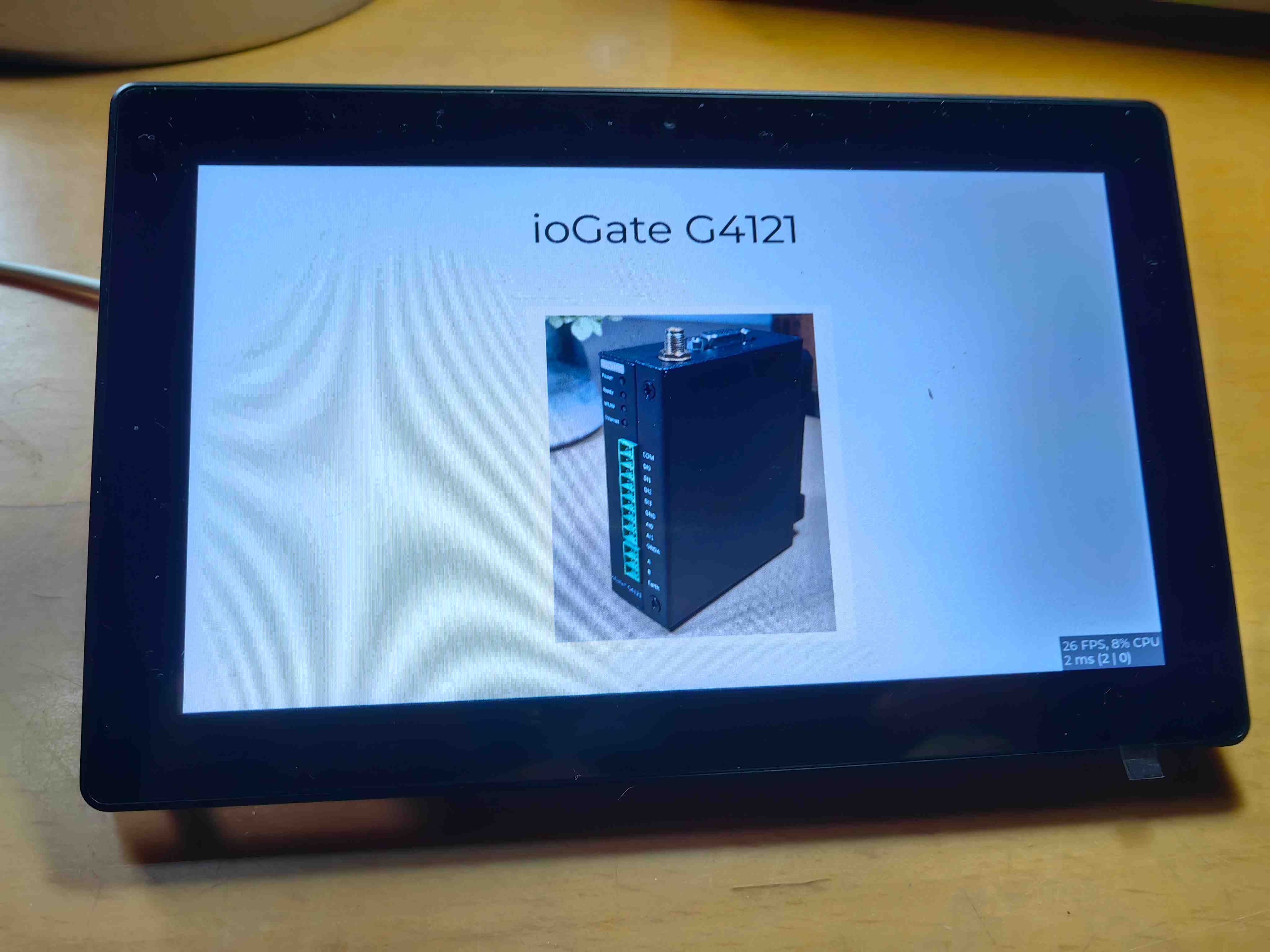

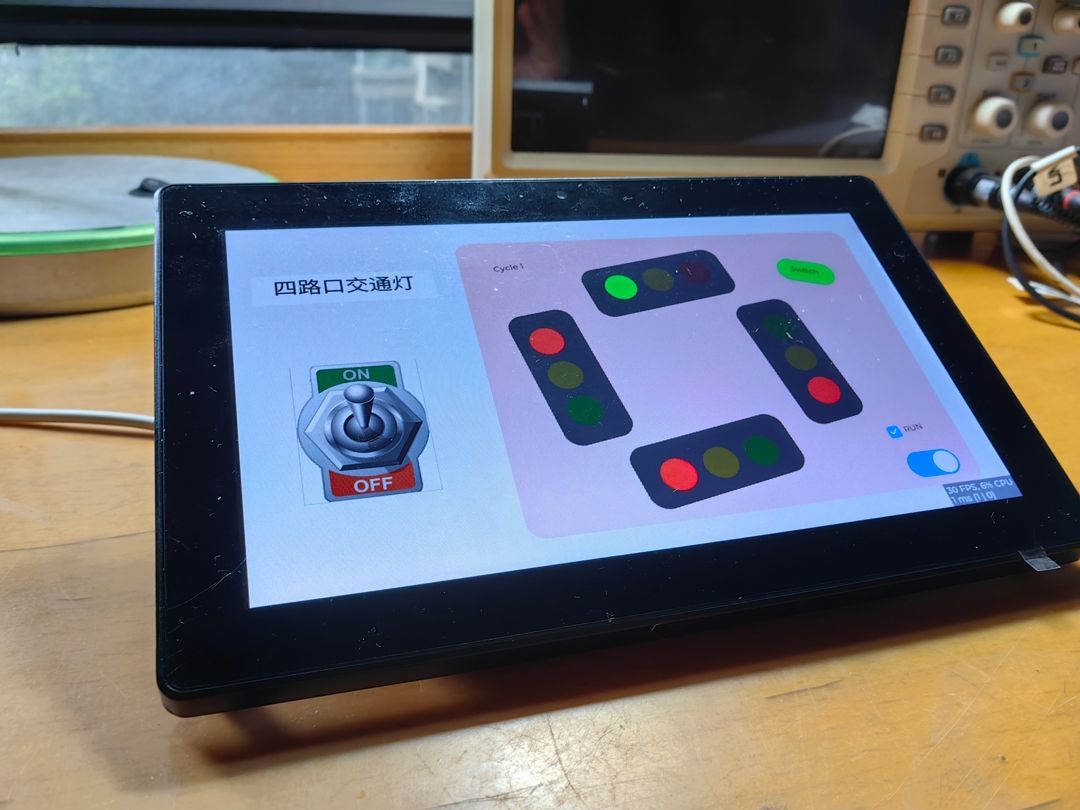

- 7" 1024x600 LCD display to support live UI configuration with UI Editor
- Built-in Javascript engine with data binding to UI for control logic (by Logic Editor for Ladder programming and scripting)
- Best for user interface and control applications
